7Y48A03CEA

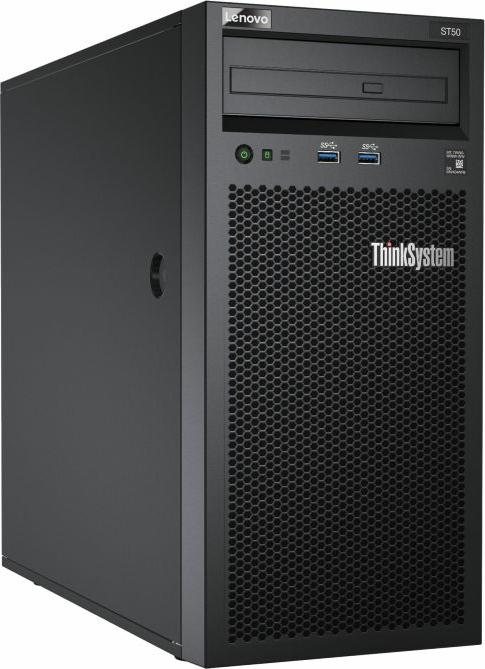

Lenovo ST50 Xeon Tower Server, Xeon E-2224G 3.5Ghz, 8GB RAM, 2x 2TB HDD, No OS

Lenovo ST50 Xeon Tower Server, Intel Xeon E-2224G 3.5GHz up to 4.7GHz 8MB Cache Quad 4x Core Processor with Intel UHD Graphics P630, 1x 8GB DDR4-2666 UDIMM Memory, 2x 2TB SATA 3.5" 7200rpm Hard Disk Drive, SATA RAID, Fixed 1x 250W PSU, DVD writer Optical Drive, onboard ahci storage controller, 4x 3.5" SATA cabled disk bays, 1x GbE OnBoard networking Ports, TPM 2.0, Intel AMT 12 system management

Overview:

The Lenovo ThinkSystem ST50 1-socket 4U rack-mountable tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server supports one Intel Xeon E-2100 Series processor (formerly codenamed "Coffee Lake") and up to 64 GB of 2666 MHz TruDDR4 ECC memory.

Features:

Scalability and performance
The ST50 offers numerous features to boost performance, improve scalability, and reduce costs:

• The Intel Xeon E-2100 Series processors improves productivity by offering affordable single-socket system performance with 6-core processors with up to 3.8 GHz core speeds.
• Intelligent and adaptive system performance with Intel Turbo Boost Technology 2.0 allows processor cores to run at maximum speeds during peak workloads by temporarily going beyond processor thermal design power (TDP).
• Intel Hyper-Threading Technology boosts performance for multithreaded applications by enabling simultaneous multithreading within each processor core, up to two threads per core.
• Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better use the hardware for virtualization workloads.
• Up to four 2666 MHz DDR4 ECC or non-ECC UDIMMs provide speed and capacity of up to 64 GB.
• The server offers PCI Express 3.0 I/O expansion capabilities that increase the theoretical maximum bandwidth by almost 100% (8 GTps per link using 128b/130b encoding) compared to the PCI Express 2.0 (5 GTps per link using 8b/10b encoding).
• With Intel Integrated I/O Technology, the PCI Express 3.0 controller is integrated into the Intel Xeon E-2100 Series processors. Such integration reduces I/O latency and increases overall system performance.
• Up to four non-hot-swap (NHS) drive bays supporting hard disk drives (HDDs) or solid-state drives (SSDs) provide flexible internal storage capacity.
• The use of SSDs instead of, or along with, traditional spinning drives (hard disk drives or HDDs) can significantly improve I/O performance.

Availability and serviceability
The ST50 provides many features to simplify serviceability and increase system uptime:

• The ST50 supports UDIMM memory with ECC protection which provides error correction not available in PC-class "servers" that use parity memory. Avoiding system crashes (and data loss) due to soft memory errors means greater system uptime.
• Tool-less cover removal provides easy access to upgrades and serviceable parts, such as memory and adapter cards.
• A choice of affordable onboard SATA RAID or advanced hardware RAID redundancy offers data protection and greater system uptime.
• The use of SSDs can provide better reliability than the use of traditional HDDs, for greater uptime.
• Built-in Active Management Technology based on Intel Active Management Technology (AMT) 12.0 which continuously monitors system parameters, sends alerts, and enables administrators to perform remote recovery actions to minimize downtime.
• The Lenovo XClarity Provisioning Manager Lite tool can be used to install an operating system on the server and perform system diagnostics.
• One-year or three-year customer-replaceable unit (CRU) and onsite limited Warranty with next business day response. Optional service upgrades are available.

Manageability and security
Powerful systems management features simplify local and remote management of the ST50:

• Intel Active Management Technology (AMT) 12.0 monitors server availability and enables administrators to perform remote management.
• An integrated industry-standard Unified Extensible Firmware Interface (UEFI) enables improved setup, configuration, and updates, and simplifies error handling.
• An integrated hardware Trusted Platform Module (TPM) supporting TPM 2.0 and 1.2 enables advanced cryptographic functionality, such as digital signatures and remote attestation.
• Protects application code and data from disclosure or modification with Intel Software Guard Extensions (SGX), enabling high-assurance security use cases, such as blockchain, identity and records privacy, secure browsing, and digital rights management (DRM).
• Administrator and power-on passwords help protect from unauthorized access to the server.
• An intrusion switch on the cover of the server and padlock loop at the rear of the server help detect and prevent unauthorized physical access to the internal components of the server .
• A slot for a Kensington-style cable lock helps prevent theft.

Energy efficiency
The ST50 offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to a green environment:

•
  80 PLUS Platinum-certified power supply (select models) enables greater energy savings while providing flexibility to meet your business needs.
• Intelligent Cooling Engine (ICE) actively monitors component temperatures in real-time and optimally adjusts the speeds of the fans to keep the system cooler and quieter.
• The ThinkSystem Capacity Planner tool provides information about the power consumption and electric current calculation for the different configurations of servers and other devices, which helps plan deployment of servers and devices in an efficient way.
• Intel Intelligent Power Capability powers individual processor elements on and off as needed, to reduce power draw.

Specifications:

© 2022 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	7Y48A03CEA
Processor
Processor	Intel Xeon E
Processor manufacturer	Intel
Processor model	E-2224G
Processor frequency	3.5 GHz
Processor boost frequency	4.7 GHz
Processor cache	8 MB
Motherboard chipset	Intel C246
Number of processors installed	1
Execute Disable Bit	Yes
Idle States	Yes
Memory
Internal memory (GB)	8 GB
Internal memory type	DDR4-SDRAM
ECC	Yes
Memory clock speed	2666 MHz
Memory layout (slots x size)	1 x 8 GB
Storage
Total storage capacity	4000 GB
Number of HDDs installed	2
Hard Drive storage capacity	2000 GB
Graphics
On-board graphics card	Yes
On-board graphics card model	Intel UHD Graphics P630
Network
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Serial ports quantity	1
DisplayPort	2
Design
Chassis type	Tower (4U)
Colour	Black
Performance
Performance management	XClarity Provisioning Manager Lite
Trusted Platform Module (TPM)	Yes
Software
Compatible operating systems	Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi
Processor special features
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Clear Video Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Power
Power supply	250 W
Number of redundant power supplies installed	1
Weight & dimensions
Width	175 mm
Depth	424 mm
Height	376 mm
