7ZT7A00496

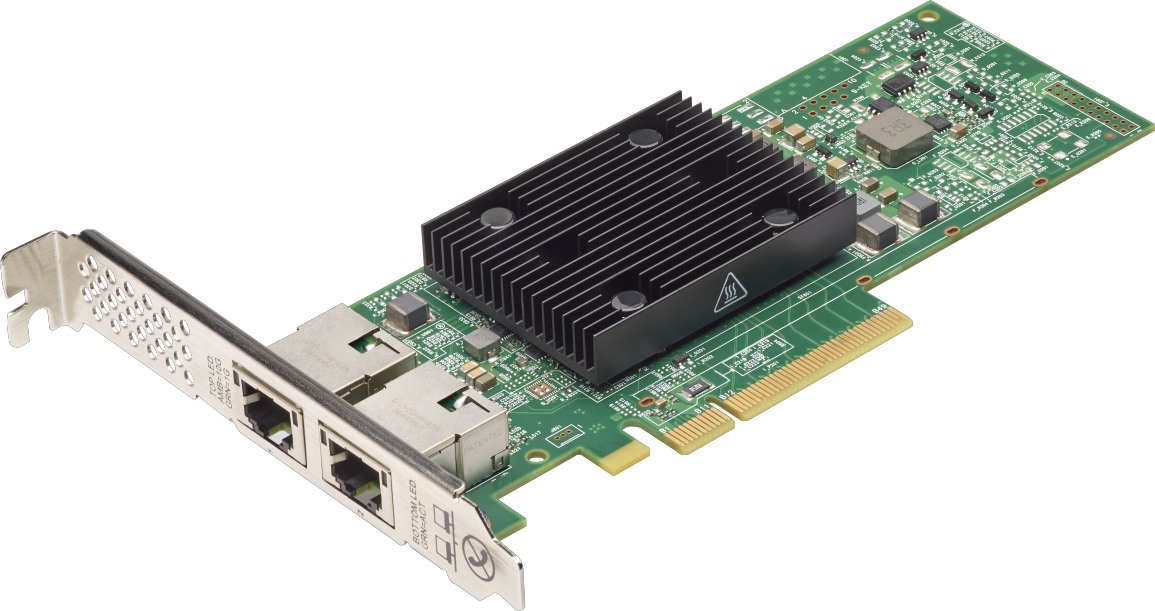

Lenovo ThinkSystem Broadcom 57416 10GBASE-T 2-Port PCIe Ethernet Adapter

Lenovo - Lenovo 7ZT7A00496 ThinkSystem Broadcom 57416 10GBASE-T 2-port PCI-e Ethernet Adapter, PCI Express 3.0 x8 Host Interface
No stock at suppliers. print


Not rated yet



Rate this product

Specials
Prices, images and descriptions are for reference purposes only & may change without prior notice. PLEASE RELY ON ABOVE DESCRIPTIONS AND NOT ON IMAGES. 7ZT7A00496 Lenovo ThinkSystem Broadcom 57416 10GBASE-T 2-Port PCIe Ethernet Adapter is available from Laptop Direct and it is sold as new from our Server chassis accessories range of products. For reference purposes, the price of R7545 is valid 2026-08-24, and while stocks last, may be valid until . The price displayed is a guide for reference purposes only, and may change without prior notice. Reference prices are an invitation for potential buyers to make an offer to purchase, which we may reject without reason. A quote with final pricing is sent before a purchase can be made. T&C's apply. E&OE. Laptop Direct. You are looking at products found in the Server chassis accessories category.
Subscribe

Specification for the entire series

Important information: Kindly note that specifications differ between models. Features, options and accessories displayed below this paragraph are not included with this product unless it has been specified in the above description.


Please remember these important points when reading the information below this paragraph: Operating systems cannot be removed or changed, monitors are not included with computers, free Anti-virus and Office Software are trial versions or may have limited features and an additional license needs to be purchased to activate the full product.

7ZT7A00496

Lenovo ThinkSystem Broadcom 57416 10GBASE-T 2-Port PCIe Ethernet Adapter

Lenovo 7ZT7A00496 ThinkSystem Broadcom 57416 10GBASE-T 2-port PCI-e Ethernet Adapter, PCI Express 3.0 x8 Host Interface

Overview:

The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. The adapters are available in either ML2 form factor or PCIe low-profile form factor for use in Lenovo ThinkSystem servers.

Features:

  • Dual-channel 10 Gbps Ethernet controller
  • 10GBASE-T IEEE 802.3an support
  • 1000BASE-T IEEE 802.3ab support
  • Based on the Broadcom BCM957416A4160C adapter and BCM57416 controller
  • Supports IPv4 and IPv6
  • Broadcom TruFlow flow processing engine
  • PCI Express 3.0 x8 host interface
  • Form factor:
  • ML2 form factor (7ZT7A00497)
  • PCIe low-profile form factor (7ZT7A00496)
Virtualization features
  • SR-IOV support with up to 128 VFs
  • VXLAN, NVGRE, Geneve, GRE encapsulation and decapsulation
  • vSwitch acceleration
  • Multiqueue, NetQueue, and VMQ
  • Tunnel-aware stateless offloads
  • Message Signal Interrupts (MSI-X) support
Ethernet and NIC
  • IPv4 and IPv6 offloads
  • TCP, UDP, and IP checksum offloads
  • Large Send Offload (LSO)
  • Large Receive Offload (LRO)
  • TCP Segmentation Offload (TSO)
  • Receive-side Scaling (RSS)
  • Transmit-side Scaling (TSS)
  • VLAN insertion/removal
  • Interrupt coalescing
  • Jumbo frames up to 9 KB
  • Network boot-PXE, UEFI
  • iSCSI boot
  • Data Plan Development Kit (DPDK) support
Remote Direct Memory Access (RDMA):
  • Supports RDMA over converged Ethernet (RoCE) specifications
Data Center Bridging / Converged Enhanced Ethernet (DCB/CEE):
  • Hardware Offloads of Ethernet TCP/IP
  • 802.1Qbb Priority Flow Control (PFC)
  • 802.1 Qaz Enhanced Transmission Selection (ETS)
  • 802.1 Qaz Data Center Bridging Exchange (DCBX)
Management:
  • SMBus 2.0
  • MCTP over SMBus
  • NC-SI support (ML2 adapter only)
